Robot Projects

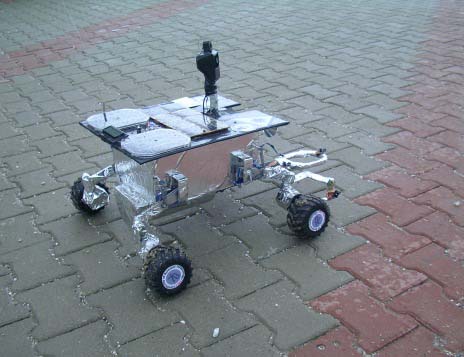

Termit is a mine searching and exploring robot and is studied with solar energy. It was made in 2006. It's fully autonomous and remote control.The robot uses 6 dc motors to move the wheels, camera and robot arm. I use one PIC16F877A and PIC16F628A and two R/C devices. I use several mosfet for motor drives. To avoid obstacles I use five IR-sensors that give a picture of what the robot is approaching. From that information the robot decides if it should go to the left or the right. And if this robot detections a mine, it will transmit a signal to control center. The four wheels of termit have encoders. With those encoders Termit can save and transport the data of the path and also the coordinates of the founded points. The coordinate system of the Termit is an x-y system with a reference point that was taken from Termit's start point. watch its video
Robo-MI05 was made in 2005 for a competition organised by Middle East Technical University in Turkey and was awarded as the first. It is an indoor mobile robot. Robo-MI05 is completely autonomous and also can be remote controlled when it is wanted. Its mission is security and cleaning. It has an RC camera in order to transport the view to the computer. It has also two motion sensors to detect the obstacles or a movement. Its cleaning ability is provided with a vacuum broom which was made of a plastic cup. Robo-MI05 works in two ways. First, it autonomously works in a given environment by avoiding the obstacles without crushing them and sweeps. Second, man can watch its every movement with its mini RC camera and gives it commands by using a pc. Therefore, Robo-MI05 can be used as an exploring robot. When it has finished its cleaning mission, it is placed in a position at which it can see whole room. When it waits in that position Robo-MI05 is in stand-by position. Its RC camera is closed but its motion sensors are active. Whenever it motion sensors detects a movement it makes its RC camera became active and performs its security mission. It was programmed in C programming language.

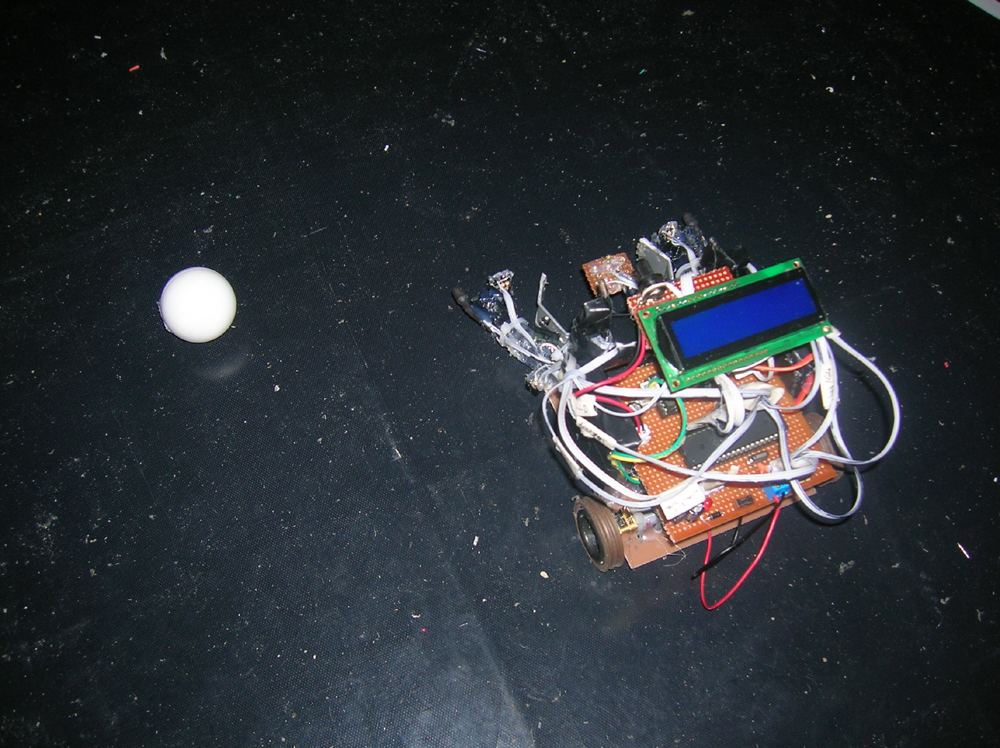

Scorer is a ball playing robot. It has three geared dc motors. Two for the wheels and one for its robot hand. At the begining ıt searchs for the ball. It has two IR sensors for finding the ball when it detects the ball it moves to catch it and hold it by using robot hand. After it hold the ball it starts to search for the castle. The Scorer has two other IR sensors to find the castle and the castle also has an IR emitting circuit. Therefore when the Scorer find the castle it goes through the castle to make score and goalll!:) Scorer provides the contact by its LCD. It gives messages of all the steps that it follows. The main circuit of Scorer is controlled by PIC16F877A and the castle has also an IR emitting circuit that was prepared with a PIC16F628A. watch its video
Terminator is a mini sumo robot with four mini dc motors. Its motors are powerfull Faulhaber motors and its wheels provide a good friction in order to be not pushed out of the arena. It has five IR sensors to detect its competitor. Two of them are on the front face, two of them are on the right and left faces and one is on the back. It is controlled by PIC16F628A microcontroller. There are two CNY70 sensors under the robot body to detect the white path around the arena. Terminator is the champion of the International Robotic Days in 2009 organised by Middle East Technical University. watch its first video watch its second video
Eraser has two mini Faulhaber dc motors which are also used by Terminator. Its body is specifically designed to push its opponent. It has four IR sensors to detect its competitor and two CNY70 sensors to detect the white path around the arena. It is controlled by PIC16F628A.
Hunter is a four wheels mini sumo robot with geared dc motors. It has a specific programme that controls its velocity. It detects its opponent by its IR sensors. To detect the white path around the arena, it uses QRD1114 reflective optosensors. It is controlled by PIC16F877A. watch its video
Symirna is a fast line follower robot. It has two geared dc motors which are only 200 rpm. Despite of this low rpm of its motors, its design makes it fast. It has four CNY70 reflective optosensors to detect the white path on black surface. It is controlled by PIC16F628A. Its motor driver circuit was prepared with L293D. Symirna is the winner of the Line Following Robot Category of Robot Competition in 2008 organised by Istanbul Technical University and the third of the National Robot Competition in 2008 organised by Aegean Region Chamber of Industry. watch its video
This is a standart line following robot model with four CNY70 reflective optosensors. It has two geared dc motors. The voltage is supplied by eight alkaline batteries. PIC16F628A is used as microcontroller and L293D is used as motor driver. It follows the white path on black surface. watch its video
The basic line follower robot is the most suitable robot project for people who have just started to interest robotics as a hobby. It has three CNY70 reflective optosensors to detect the white path on black surface. It is controlled by PIC16F628A. The motor driver circuit is made by using two BDX53 darlington transistors. Its motors are dc motors and specific gear boxes are used with them. These basic line follower robots works only with two alkaline batteries. watch its video
This is a standart mini sumo robot model with two geared dc motors and three IR sensor. One IR sensor is on the front face, one is on the right and one is on the left face. It has also two CNY70 reflective optosensors to detect the white path around the arena. It is controlled by PIC16F628A and it is use L293D as motor driver. watch its video
Standart sumo robot model has four IR sensors to detect its opponent and two CNY70 reflective optosensors to detect the white path around the arena. Two powerfull geared dc motors are used. The sumo robot is controlled by PIC16F628A microcontroller. The voltage is supplied by a 12 V accumulator. watch its video
This is a standart line following and obstacle avoiding robot model. As a line follower it follows the white path on black surface. When it detects an obstacle on the way it stops a short time and changs its way to not crush the obstacle. Therefore, it keeps moving and finds its own way. It has three CNY70 reflective optosensors to detect the white path on black surface and an IR sensor to detect the obstacles while it follows the path. The IR sensor circuit was prepared by using TSOP1738 IR Receiver. It is controlled by PIC16F628A microcontroller that was programmed with C. Its two dc motors are driven by L293D. watch its video
This is a simple line follower robot that is designed for the purpose of applying pwm control with opamps without using any microprocessor. 5 CNY70 reflective optical sensors and 5 NE555 opamps are used. To drive the motors I've used two mosfets (IRFZ44). This line follower robot is very effective, it has a smooth motion on the path. watch its video
Cyclops is a obstacle avoider robot with one obstacle detector. This obstacle detector is prepared with an IR led and IR receiving module. To detect the obstacle all around the robot the obstacle detector was mounted on a stepper motor. The stepper motor comb the surroundig of robot by turning clockwise and counterclockwise. Watch its video Watch the video of sensor motion
This is a standart obstacle avoiding robot model with two IR sensors to detect the obstacles. It is controlled by PIC16F628A. Its two dc motors are driven by L293D. Its voltage is supplied by a 9V alkaline battery. watch its video

Termit is a mine searching and exploring robot and is studied with solar energy. It was made in 2006. It's fully autonomous and remote control.The robot uses 6 dc motors to move the wheels, camera and robot arm. I use one PIC16F877A and PIC16F628A and two R/C devices. I use several mosfet for motor drives. To avoid obstacles I use five IR-sensors that give a picture of what the robot is approaching. From that information the robot decides if it should go to the left or the right. And if this robot detections a mine, it will transmit a signal to control center. The four wheels of termit have encoders. With those encoders Termit can save and transport the data of the path and also the coordinates of the founded points. The coordinate system of the Termit is an x-y system with a reference point that was taken from Termit's start point.
watch its video

Robo-MI05 was made in 2005 for a competition organised by Middle East Technical University in Turkey and was awarded as the first. It is an indoor mobile robot. Robo-MI05 is completely autonomous and also can be remote controlled when it is wanted. Its mission is security and cleaning. It has an RC camera in order to transport the view to the computer. It has also two motion sensors to detect the obstacles or a movement. Its cleaning ability is provided with a vacuum broom which was made of a plastic cup. Robo-MI05 works in two ways. First, it autonomously works in a given environment by avoiding the obstacles without crushing them and sweeps. Second, man can watch its every movement with its mini RC camera and gives it commands by using a pc. Therefore, Robo-MI05 can be used as an exploring robot. When it has finished its cleaning mission, it is placed in a position at which it can see whole room. When it waits in that position Robo-MI05 is in stand-by position. Its RC camera is closed but its motion sensors are active. Whenever it motion sensors detects a movement it makes its RC camera became active and performs its security mission. It was programmed in C programming language.

Scorer is a ball playing robot. It has three geared dc motors. Two for the wheels and one for its robot hand. At the begining ıt searchs for the ball. It has two IR sensors for finding the ball when it detects the ball it moves to catch it and hold it by using robot hand. After it hold the ball it starts to search for the castle. The Scorer has two other IR sensors to find the castle and the castle also has an IR emitting circuit. Therefore when the Scorer find the castle it goes through the castle to make score and goalll!:) Scorer provides the contact by its LCD. It gives messages of all the steps that it follows. The main circuit of Scorer is controlled by PIC16F877A and the castle has also an IR emitting circuit that was prepared with a PIC16F628A.
watch its video

Terminator is a mini sumo robot with four mini dc motors. Its motors are powerfull Faulhaber motors and its wheels provide a good friction in order to be not pushed out of the arena. It has five IR sensors to detect its competitor. Two of them are on the front face, two of them are on the right and left faces and one is on the back. It is controlled by PIC16F628A microcontroller. There are two CNY70 sensors under the robot body to detect the white path around the arena. Terminator is the champion of the International Robotic Days in 2009 organised by Middle East Technical University.
watch its first video
watch its second video

Eraser has two mini Faulhaber dc motors which are also used by Terminator. Its body is specifically designed to push its opponent. It has four IR sensors to detect its competitor and two CNY70 sensors to detect the white path around the arena. It is controlled by PIC16F628A.

Hunter is a four wheels mini sumo robot with geared dc motors. It has a specific programme that controls its velocity. It detects its opponent by its IR sensors. To detect the white path around the arena, it uses QRD1114 reflective optosensors. It is controlled by PIC16F877A.
watch its video

Symirna is a fast line follower robot. It has two geared dc motors which are only 200 rpm. Despite of this low rpm of its motors, its design makes it fast. It has four CNY70 reflective optosensors to detect the white path on black surface. It is controlled by PIC16F628A. Its motor driver circuit was prepared with L293D. Symirna is the winner of the Line Following Robot Category of Robot Competition in 2008 organised by Istanbul Technical University and the third of the National Robot Competition in 2008 organised by Aegean Region Chamber of Industry.
watch its video

This is a standart line following robot model with four CNY70 reflective optosensors. It has two geared dc motors. The voltage is supplied by eight alkaline batteries. PIC16F628A is used as microcontroller and L293D is used as motor driver. It follows the white path on black surface.
watch its video

The basic line follower robot is the most suitable robot project for people who have just started to interest robotics as a hobby. It has three CNY70 reflective optosensors to detect the white path on black surface. It is controlled by PIC16F628A. The motor driver circuit is made by using two BDX53 darlington transistors. Its motors are dc motors and specific gear boxes are used with them. These basic line follower robots works only with two alkaline batteries.
watch its video

This is a standart mini sumo robot model with two geared dc motors and three IR sensor. One IR sensor is on the front face, one is on the right and one is on the left face. It has also two CNY70 reflective optosensors to detect the white path around the arena. It is controlled by PIC16F628A and it is use L293D as motor driver.
watch its video

Standart sumo robot model has four IR sensors to detect its opponent and two CNY70 reflective optosensors to detect the white path around the arena. Two powerfull geared dc motors are used. The sumo robot is controlled by PIC16F628A microcontroller. The voltage is supplied by a 12 V accumulator.
watch its video

This is a standart line following and obstacle avoiding robot model. As a line follower it follows the white path on black surface. When it detects an obstacle on the way it stops a short time and changs its way to not crush the obstacle. Therefore, it keeps moving and finds its own way. It has three CNY70 reflective optosensors to detect the white path on black surface and an IR sensor to detect the obstacles while it follows the path. The IR sensor circuit was prepared by using TSOP1738 IR Receiver. It is controlled by PIC16F628A microcontroller that was programmed with C. Its two dc motors are driven by L293D.
watch its video

This is a simple line follower robot that is designed for the purpose of applying pwm control with opamps without using any microprocessor. 5 CNY70 reflective optical sensors and 5 NE555 opamps are used. To drive the motors I've used two mosfets (IRFZ44). This line follower robot is very effective, it has a smooth motion on the path.

watch its video

Cyclops is a obstacle avoider robot with one obstacle detector. This obstacle detector is prepared with an IR led and IR receiving module. To detect the obstacle all around the robot the obstacle detector was mounted on a stepper motor. The stepper motor comb the surroundig of robot by turning clockwise and counterclockwise.
Watch its video
Watch the video of sensor motion

This is a standart obstacle avoiding robot model with two IR sensors to detect the obstacles. It is controlled by PIC16F628A. Its two dc motors are driven by L293D. Its voltage is supplied by a 9V alkaline battery.
watch its video
